Silicone oil reduced syringes

Siliconization is critical to ensure reliable function of prefillable syringes. It ensures optimal syringe performance for delivering medications. Thanks to the hydrophobicity of the silicon layer, potential interaction between the glass and the drug formula is reduced. As a standard, our prefillable glass syringes are spray-siliconized using diving nozzle technology in order to ensure an even coating with the smallest possible amount of silicone oil. We also offer our Gx^® Baked-on RTF^® glass syringes, which are patented in Europe and the USA for the packaging of sensitive biotechnological medications that may interact with free silicone oil droplets. In this procedure, a silicone oil emulsion is applied to the inner surface of the syringe body and subsequently thermically fixated on the surface by heating. This significantly reduces the number of free silicone oil droplets. Despite the considerably reduced amount of silicone oil, the prefillable syringes offer reliable hydrophobic properties and especially low break loose and gliding forces that remain stable throughout the storage period.

Advantages of the Gx Baked-on RTF® syringes

Masking and inactivation of the glass surface, thereby reducing the risk of interaction between the drug formulation and silicone oil
Drastically reduced amount of subvisible silicone oil particles
Long-term stable, evenly distributed, and chemically inert lubricity coating
Very even break loose and gliding force profile
Ensures optimal functionality and drug formula stability over the period of medication storage
Patented in Europe and USA

Gx® Prefillable Luer Lock Glass Syringes

Syringe sizes from 1.0 ml to 3.0 ml (additional formats upon request)

Our high-quality prefillable Gx® luer lock glass syringes are produced from type I glass. The prefillable luer lock glass syringes are available in syringe sizes from 1.0 ml to 3.0 ml (individual solutions on request).

Various closure systems

Tip Cap

Mushroom

EtO-sterilizable rubber formulas:
Datwyler FM27/FM30, Stelmi 6580, West 1883, 7025/65, 7028/55, other formulas available upon request

Closure system for prefillable luerlock glass syringes — Gx TELC®: Patented integrated luer lock closure system for prefillable glass syringes

Gx TELC®

Tamper Evident Luerlock Closure

EtO-sterilizable rubber formulas:
Datwyler FM27, Stelmi 6580, West 7025/65, other formulas available upon request

Advantages Gx TELC®

Patented integrated luer lock closure system
Luer lock adapter with tamper-evident property
Convenient and intuitive opening caused by soft touch surface and easy grip design
No unintentional pop off
Manufactured of polycarbonate (Luer Lock adapter) and medical grade Thermoplastic Elastomer (sealing cap with tamper-evident flags) using two-component injection molding
TPE parts offer color coding of the syringe
Insert is made of pharmaceutical rubber like FM27, 7025, 7028, 6580 GS can be chosen
Specified opening and spinning forces
Fulfills ISO 594 requirements
Steam-, gamma- and EtO-sterilization possible

Syringes as a complete system

Our prefillable Gx® luer lock glass syringes can be provided as a complete system with plunger stopper, plunger rod and backstop.

Plunger stoppers

Plunger rods for prefillable glass syringes

Gx® plunger rods

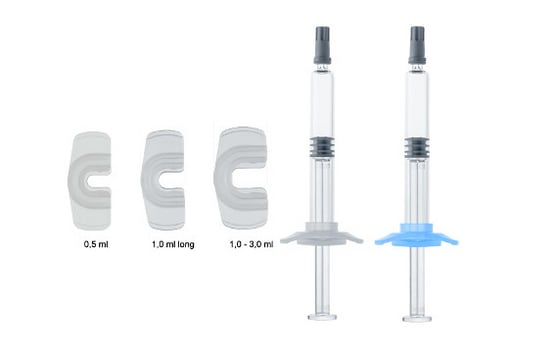

Backstops, finger enlargement for prefillable glass syringes

Gx® backstops

Gx® Prefillable Luer Cone Glass Syringes

Syringe sizes from 0.5 ml to 3.0 ml, additional formats upon request

The high-quality prefillable Gx® luer cone glass syringes are produced from type I glass. The prefillable luer cone glass syringes are available in syringe sizes from 0.5 ml to 3.0 ml (individual solutions on request).
